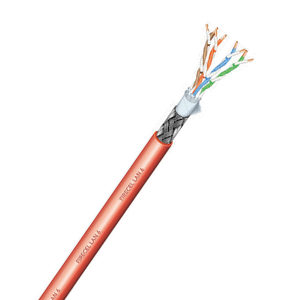

FIRECEL Fire Resistant LAN 6 Cable

Operating Temperature
-20 °C to +70 °C

Minimum bending radius
15 times the outer diameter.

Applicable Standards
Standard reference: IEC 61156-5; EN 50288-5-1;
EN 50289-4-16; ISO/IEC 11801;
EN 50173; EN 50200
Flame retardant: IEC 60332-1-2
Fire retardant: IEC 60332-3-24 (cat. C)
Fire resistant: BS EN 50200 (class PH120)
Acid gas emission: BS EN 60754-1 BS EN 60754-2
Smoke density: BS EN 61034-2

Electrical Characteristics
Max DC conductor resistance 59,4 /km
Max operating voltage 125 Vac
Min insulation resistance 2,0 G x km
Capacitance @800 Hz 65 pF/m
Characteristic Impedance 100  (± 15%)
Velocity of propagation 66%
Delay skew 20 nsec/100 m

Colour Code to HD 308
1st pair: blue,white/blue
2nd pair: orange,white/orange
3rd pair: green,white/green
4th pair: brown,white/brown

Cable construction

Conductors
Plain annealed copper wire, solid AWG22/1

Insulation
Polyolefin

Fire barrier
Special mineral glass tape, wrapped on each insulated conductor

Twisting
The insulated cores shall be twisted in pairs and wrapped
with glass fibre tape.

Cabling
The pairs are cabled together around a central cross separator filler

Overall screen
Aluminium/polyester tape, Al surface outside in contact with
a tinned copper braid shield with 65% nom. coverage

Armoured
Inner sheath: PE, PVC or LSZH thermoplastic material.
Armour: Single layer of galvanized steel wires (SWA).

Outer sheath
LSZH thermoplastic material, green colour

Nom. Outer diameter
10.6 mm
